应用场景与简洁/Brief Introduction：

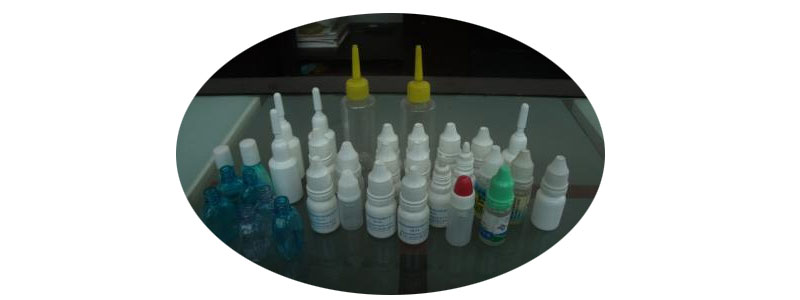

该设备不适用在2-30ML各类材質的正方形扁形材料或玻璃窗瓶的眼蓝药水装罐、微电子烟油等小分子量装罐.该设备由高gps精度凸轮机构公司度数公司提拱度数等分盘市场产品定位上塞上盖;快快慢凸轮机构公司机械传动链提拱旋盖头的生降;恒力矩旋盖;肠蠕动泵计算装罐;触控屏掌握.无瓶不装罐,不带内塞,外盖.具市场产品定位精度,机械传动链能保持稳定,维护塑料瓶盖,计算准.操作使用简便等的特点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

共同点/Characteristic：

◆微线上重设、装量精准度、运营以便于。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆虚拟主机钻速可采取无极变速直流变频空调变速。the mainframe running speed is stepless frequency conversion.◆生育量自动化酶联免疫法设定。the product quantity can be controlled. ◆各种系统故障系统提示的功能(如低风压。无分装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自動式关机实用功能，对某个路轨发生间隔无灌装设备、无内塞情況可自動式关机。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术性参数值/Main Technical Parameters：

符合样式Filling Volume	2-30ml
生产制造意识Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
罐装精密度Filling Precision	≤±1%
供电 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自然上塞率Stoppering rate	≥99%
气动阀门Air Supply	1.3 m3/h    0.4-0.8Mpa
电机功率 Power	2.0 kw
设备净重量Weight	550 kg
外观形状尺寸规格Dimension	1800*1000*1500mm
