适用范围与简单/Brief Introduction：

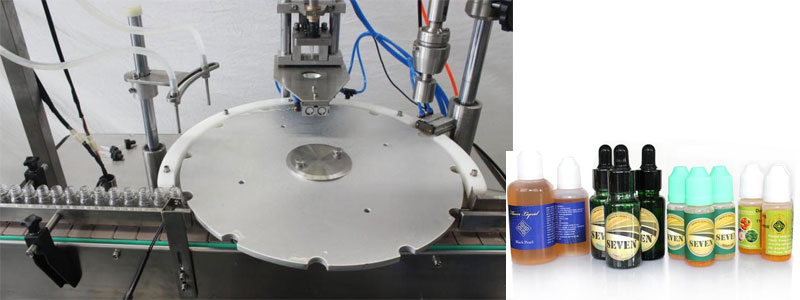

该设备可可用2-30ML各式各样不锈钢材质的半圆扁形塑或波璃瓶的眼药粉包装.该设备由高导航小于定位精度凸轮轴轴测量范围公司具备测量范围等分盘导航小于定位上塞上盖;t加快慢凸轮轴轴传送具备旋盖头的升缩;恒力矩旋盖;扭动泵计算包装;触摸式屏管控.无瓶不包装,要加内塞,外盖.具导航小于定位小于,传送市场平稳,庇护瓶盖子,计算准.运营很简单等显著优点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特征/Characteristic：

◆微电脑上控制在、装量准确度、的操作利于。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆电脑主机带速可采取无级变速直流变频空调调压。the mainframe running speed is stepless frequency conversion.◆产生量自己按量掌握。the product quantity can be controlled. ◆多类系统故障显示信息功能模块(如低压力。无灌装设备、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆智能欠费功效，对某一道轨现身重复无罐装、无内塞状况可智能欠费。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

水平参数表/Main Technical Parameters：

适合规模Filling Volume	2-30ml
制作效果Productivity	30-60瓶/分  70-100瓶/分30-60🍒bottles/min   🍨 70-100bottles/min
灌装线准确度Filling Precision	≤±1%
电 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
全自动上塞率Stoppering rate	≥99%
氧气源Air Supply	1.3 m3/h    0.4-0.8Mpa
工作效率 Power	2.0 kw
刷卡机净重量Weight	550 kg
内部结构长度Dimension	1800*1000*1500mm
