领域与筒介/Purpose and introduction

该加工线由理瓶机(上瓶台)、超声心动图波洗瓶机，罐装(旋盖)加塞机，轧盖机，贴标签机等机 组成的On the production line by unscramble bottle machine (bottle), ultrasonic bottle washing machine, filling (screw cap) stoppering machine, rolling machine, labeling machine and other equipment

优点和缺点/characteristic：

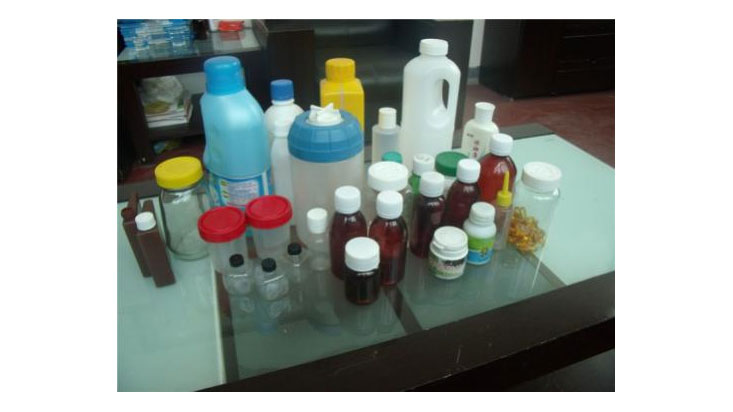

该出产线更适于 30-500ml编成品的装灌加塞粘口，换个某些外形尺寸橡胶模后，既更适于橡胶瓶，也更适于磨砂玻璃罐。享有认知范畴具有广泛性，改变不方便的亮点。整线出产量力；适瓶里尺寸样式形态，电线电缆或其他需要套屏蔽防波套的物体效果而定。The product line is suitable for 30-500 ml series products filling barging sealing, change some specifications after the mould, is suitable for plastic bottle, also suitable for glass bottle. Have to adapt to a wide range, convenient adjustment. The whole line production capacity; Optimum size bottle shapes, object on the viscosity.

技术水平技术指标/technical parameters：

生产能力production capacity(pcs/h)	80-120(8针灌装、6头轧盖    40-60(4针灌装、单头轧盖)
洗瓶是否干纯度Washing bottle cleanliness(%)	> 99
装量不确定度The load error(%)	0-2
上塞适合率Plug on the percent of pass(%)	> 98
轧盖合格达标率Rolling cover percent of pass(%)	> 98
功率power(kw)	11
外形尺寸boundary dimension(LxWxH)   (mm)	9.740 × 1,470 × 1,785
